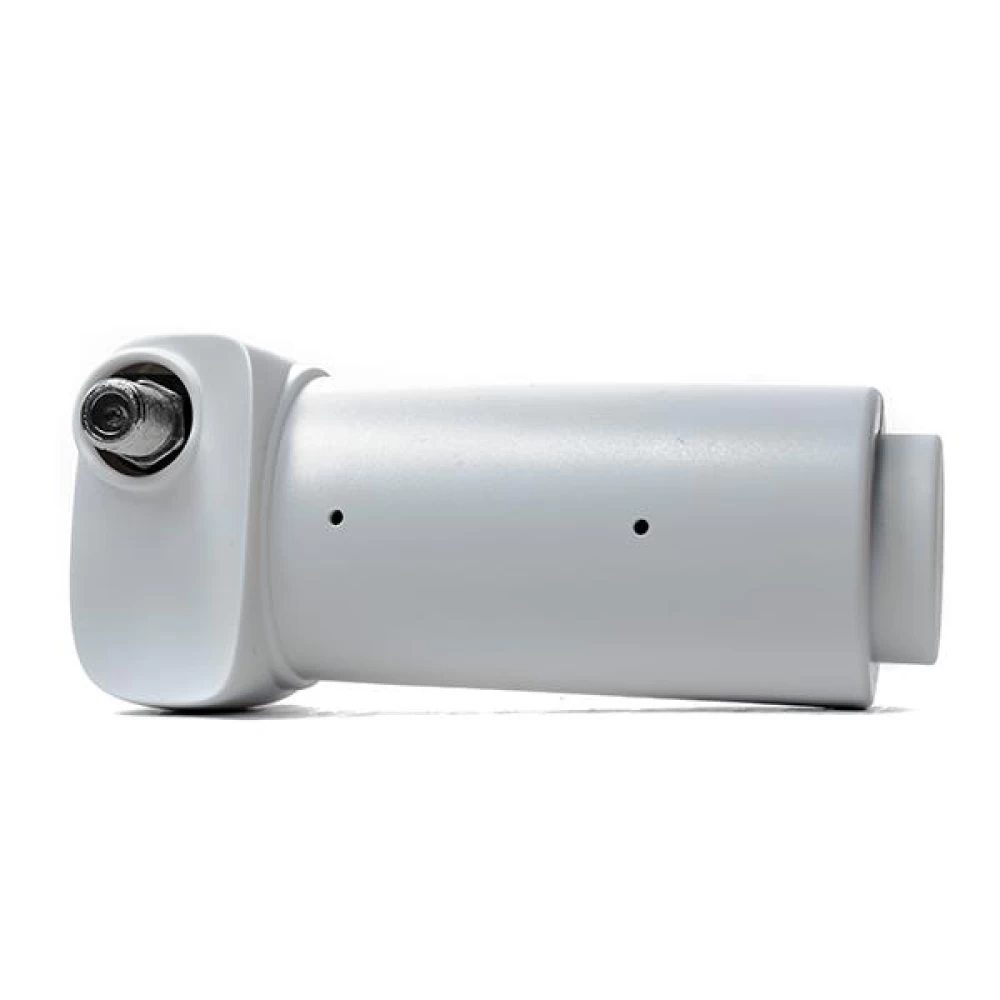

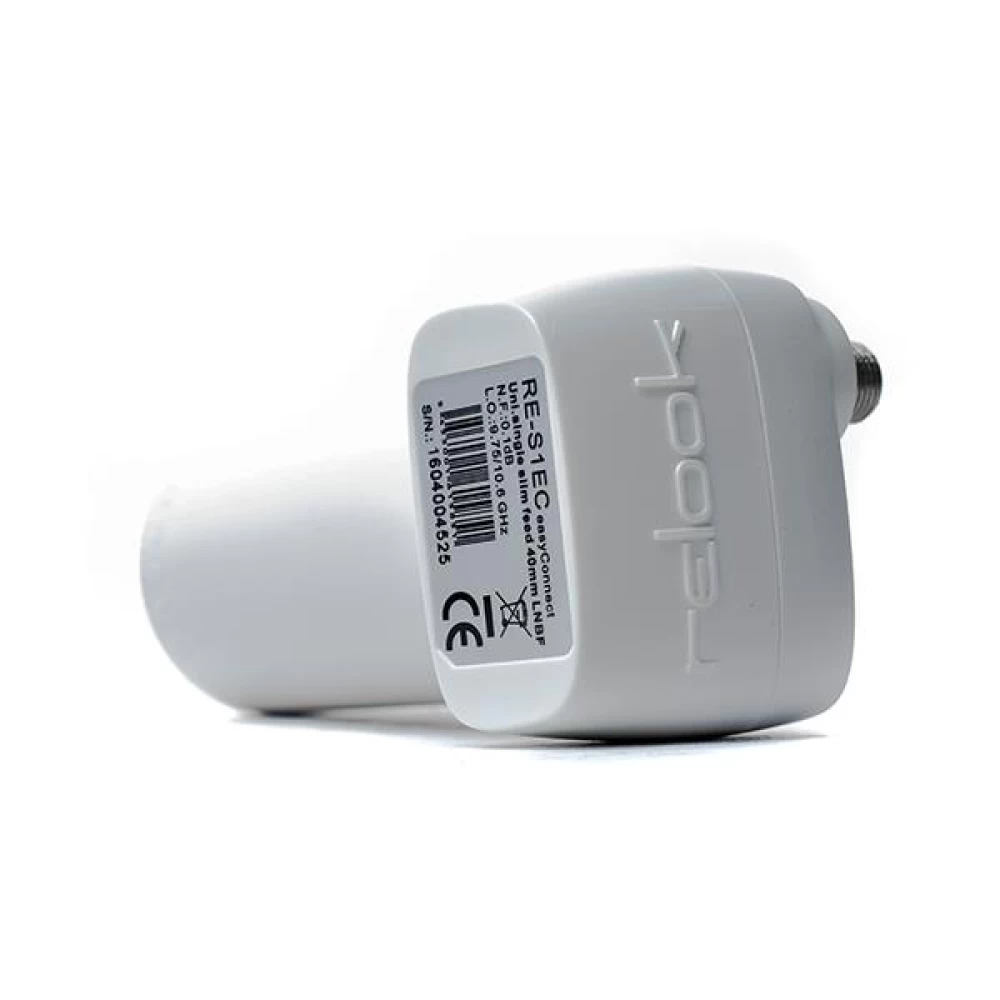

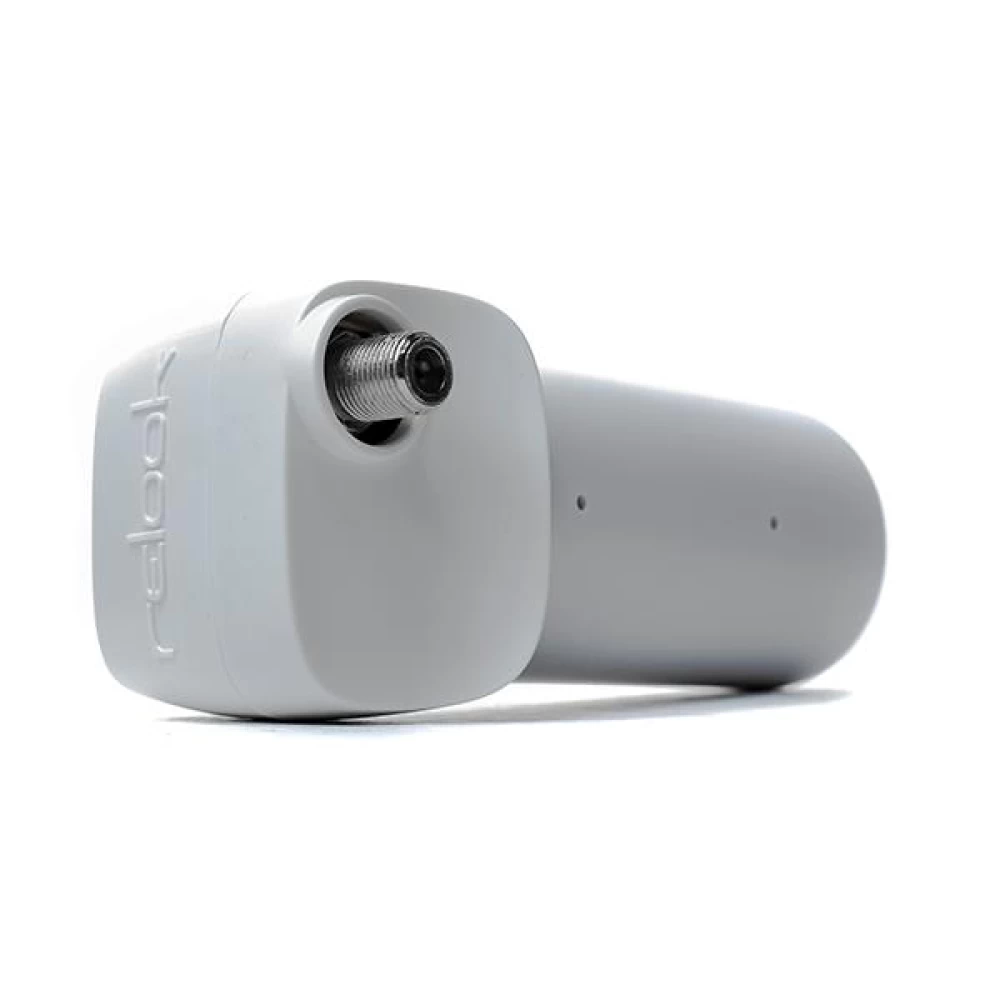

LNB single slim 0.1 dB RE-S1EC

LNB SINGLE SLIM 0.1 dB RE-S1EC

Input Frequency Range:
Low Band : 10.7 ~ 11.7 GHz
High Band : 11.7 ~ 12.75 GHz
Output Frequency Range:
Low Band : 950 ~ 1950 MHz
High Band : 1100 ~ 2150 MHz
LO.Frequency:
Low Band : 9.75 GHz
High Band : 10.60 GHz
LO.Frequency Stability:
+/- 1 MHz (maximum) at r.t.
LO.Frequency Phase Noise:
-65 dBc / Hz at 1 KHz (maximum)
-85 dBc / Hz at 10 KHz (maximum)
-105 dBc / Hz at 100 KHz (max.)
Noise Figure:
0.1 dB (typical)
Conversion Gain:
60 ~ 64 dB
Gaib Flatness 26MHz  Bandwidth:
+/- 0.5 dB (typical)
Polarity Switching Voltage:
VERTICAL : 11.0 ~ 14.0 Vdc
HORIZONTAL : 16.0 ~ 20.0 Vdc
Band Switching:
Low Band : 0 kHz
High Band : 22 kHz (+/- 4kHz)
Cross-Pol.Isolation:
22 dB (typical)
Image Rejection:
40 dB (minimum)
Output Spurious:
< -60 dBm
Current Consumption:
< -60 dBm
Output Connector Type:
75 Ohms F-Female
Operating Temperature Range:
-40°C ~ +65°C
Feed Length:
75mm
Gross Weight:
12.05 kg
Height:
57cm
Length:
29cm
Width:
26,5 cm
