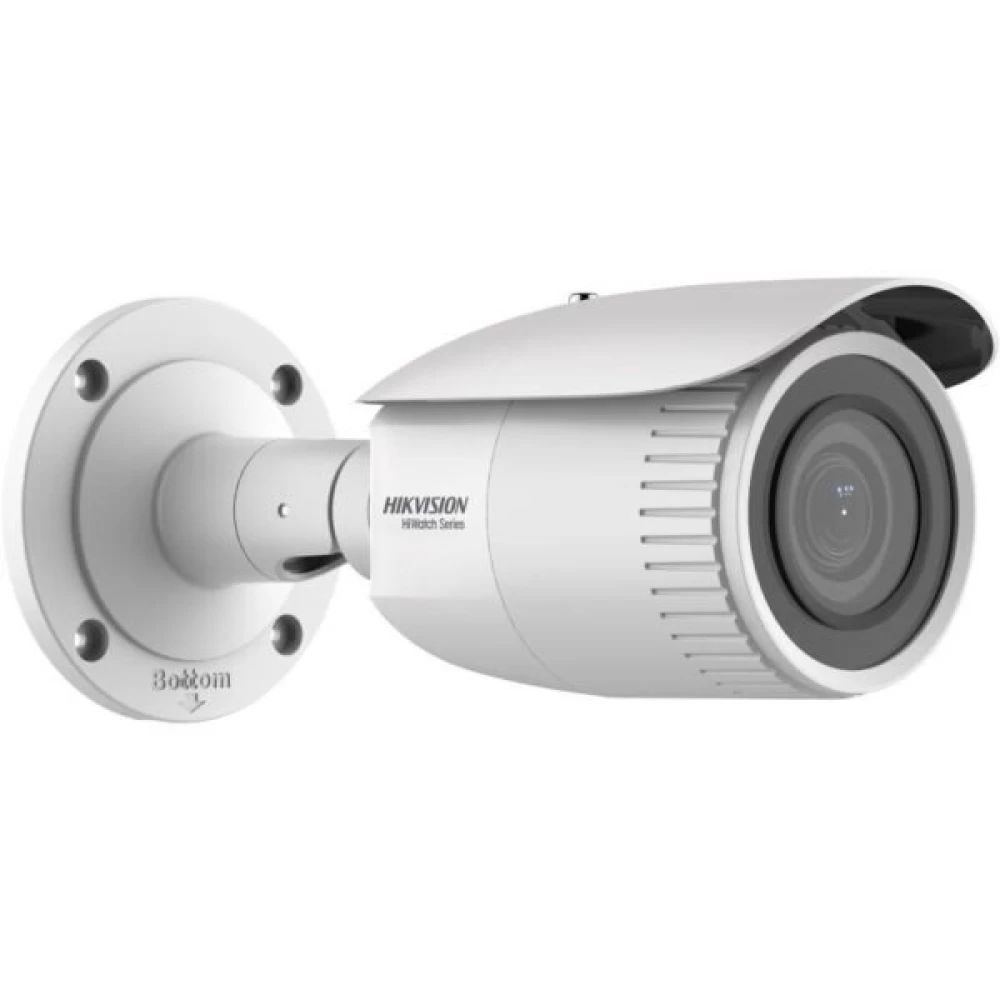

HIKVISION/HiWatch ΚΑΜΕΡΑ HWI-B620H-Z 2 MP Varifocal Bullet Network

HIKVISION/HiWatch ΚΑΜΕΡΑ HWI-B620H-Z 2 MP Varifocal Bullet Network



– Υψηλής ποιότητας απεικόνιση με ανάλυση 2 MP
– Αποδοτική τεχνολογία συμπίεσης H.265+ για εξοικονόμηση εύρους ζώνης και αποθηκευτικού χώρου
– Καθαρή απεικόνιση σε έντονο οπίσθιο φωτισμό χάρη στην τεχνολογία DWDR
– Ανθεκτικό στο νερό και τη σκόνη (IP67)
– Μηχανοκίνητος φακός μεταβλητής εστίασης για εύκολη εγκατάσταση και παρακολούθηση

Camera

Image Sensor1/2.7″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic RangeDigital WDR
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens

Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
Lens MountØ14
Iris TypeFixed
ApertureF1.6
Illuminator

IR Wavelength850 nm
IR RangeUp to 50 m
Video

Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720),

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream
Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Image EnhancementBLC, 3D DNR
Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Reset KeyYes
Event

Basic EventMotion detection, video tampering alarm, exception
LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General

Power12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug

PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W
Camera DimensionØ105 mm × 244.4 mm (4.1″ × 9.6″)
Package Dimension315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
Camera WeightApprox. 1035 g (2.3 lb.)
With Package WeightApprox. 1550 g (3.4 lb.)
Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval

EMCFCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
OtherIP67 (IEC 60529-2013)
