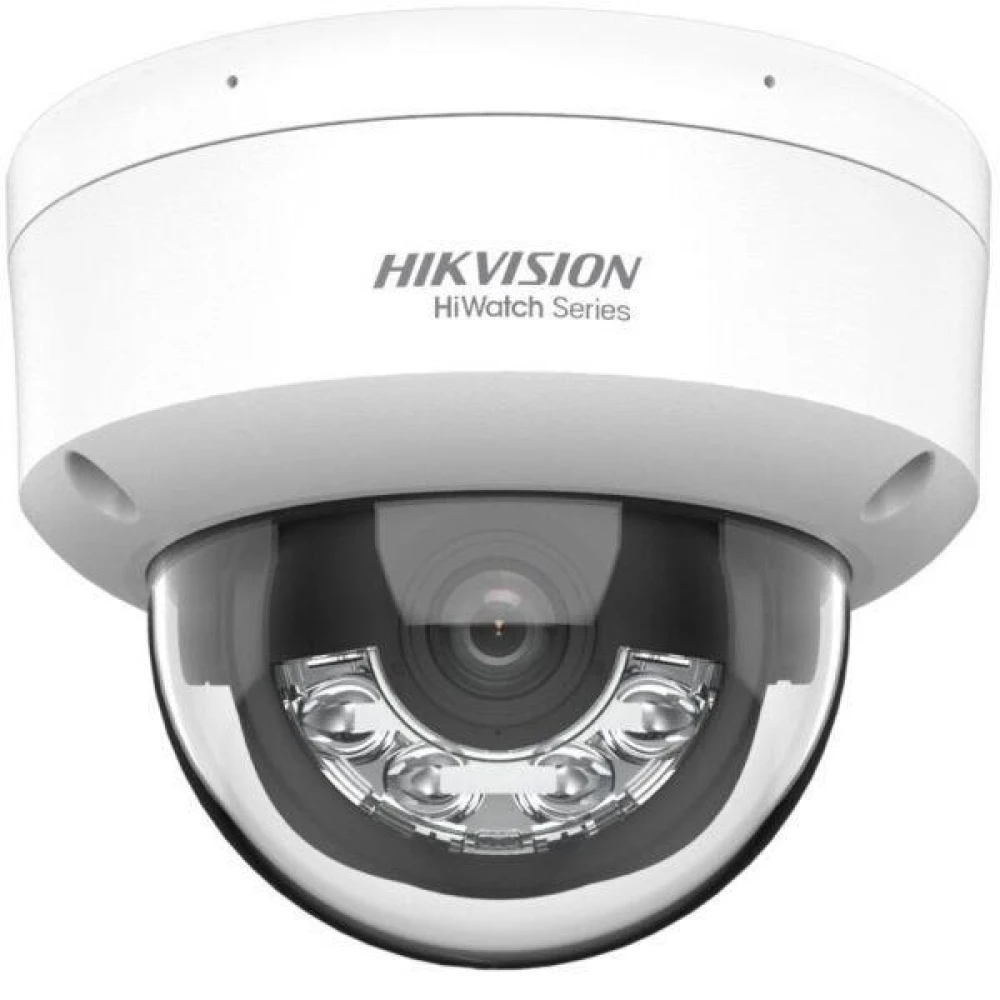

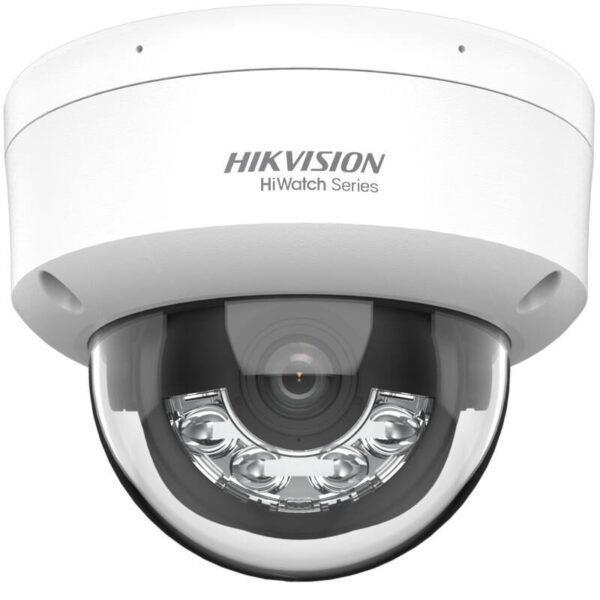

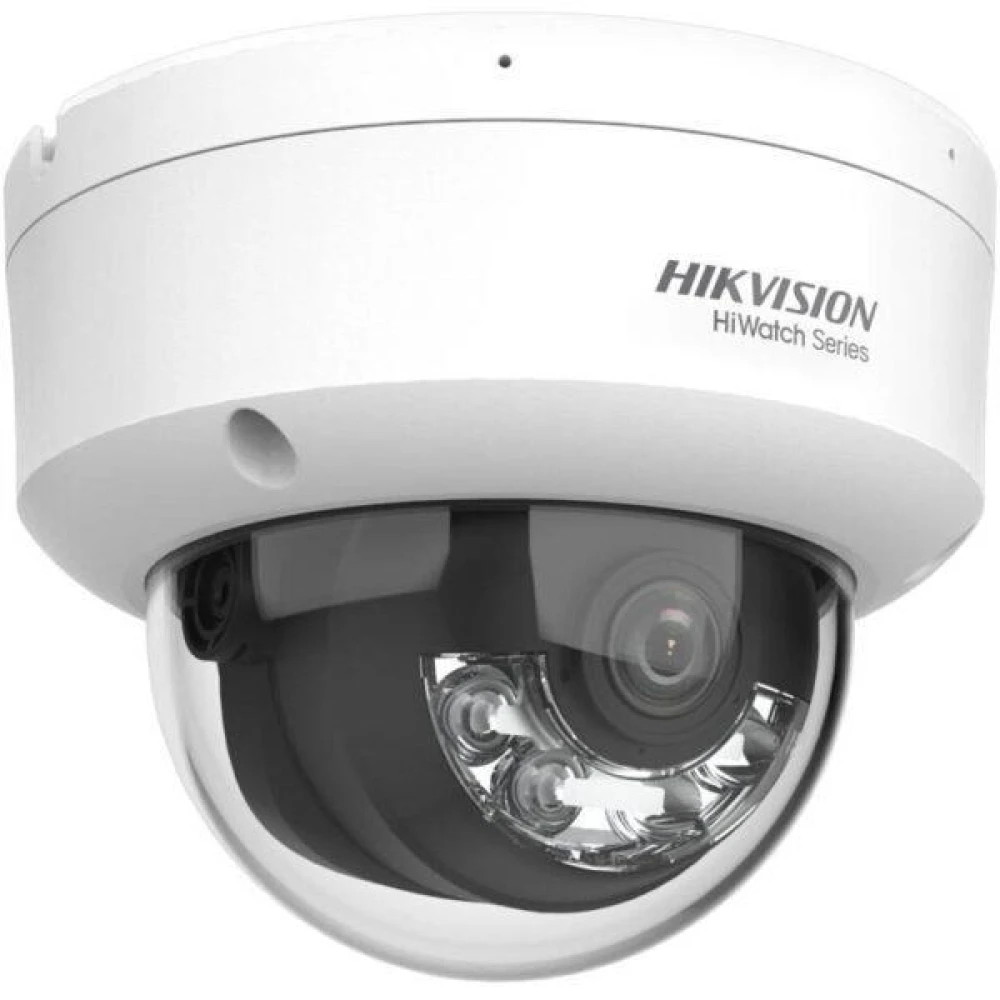

Κάμερα 6 MP Smart Hybrid Light MD 2.0 Fixed Dome HIKVISION/HiWatch HWI-D160HA-LU

Κάμερα  6 MP Smart Hybrid Light MD 2.0 Fixed Dome   HIKVISION/HiWatch

Απεικόνιση υψηλής ποιότητας με ανάλυση 6 MP
– Υποστήριξη ανίχνευσης ανθρώπων και οχημάτων
– Smart Hybrid Light: προηγμένη τεχνολογία με μεγάλη εμβέλεια
– Ενσωματωμένο μικρόφωνο για παρακολούθηση ήχου σε πραγματικό χρόνο
– Αποδοτική τεχνολογία συμπίεσης H.265+
– Ανθεκτικό στο νερό και τη σκόνη (IP67) και ανθεκτικό σε βανδαλισμούς (IK08)

Camera

Image Sensor 1/2.4″ Progressive Scan CMOS

Max. Resolution 3200 × 1800

Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time 1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Lens Mount M12

Iris Type Fixed

Aperture F1.6

DORI

DORI

2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

Supplement Light Type IR,White Light

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 16 Mbps

H.264 Type Baseline Profile,Main Profile,High Profile

H.265 Type Main Profile

Bit Rate Control CBR,VBR

Region of Interest (ROI) 1 fixed region for main stream

Scalable Video Coding (SVC) H.264 and H.265 encoding

Audio

Audio Type Mono sound

Environment Noise Filtering Yes

Audio Sampling Rate 8 kHz/16 kHz

Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps

(MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP,
UPnP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable
by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)),video tampering alarm,exception
Linkage Upload to FTP,send email,notify surveillance center,trigger capture
General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø 5.5 mm coaxial power plug,reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
Dimension Ø 121.5 mm × 97.6 mm (Ø 4.78″ × 3.84″)
Package Dimension 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight Approx. 550 g (1.2 lb.)
With Package Weight Approx. 800 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti -banding,mirror,password protection,password reset via email
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK08: IEC 62262:2002
