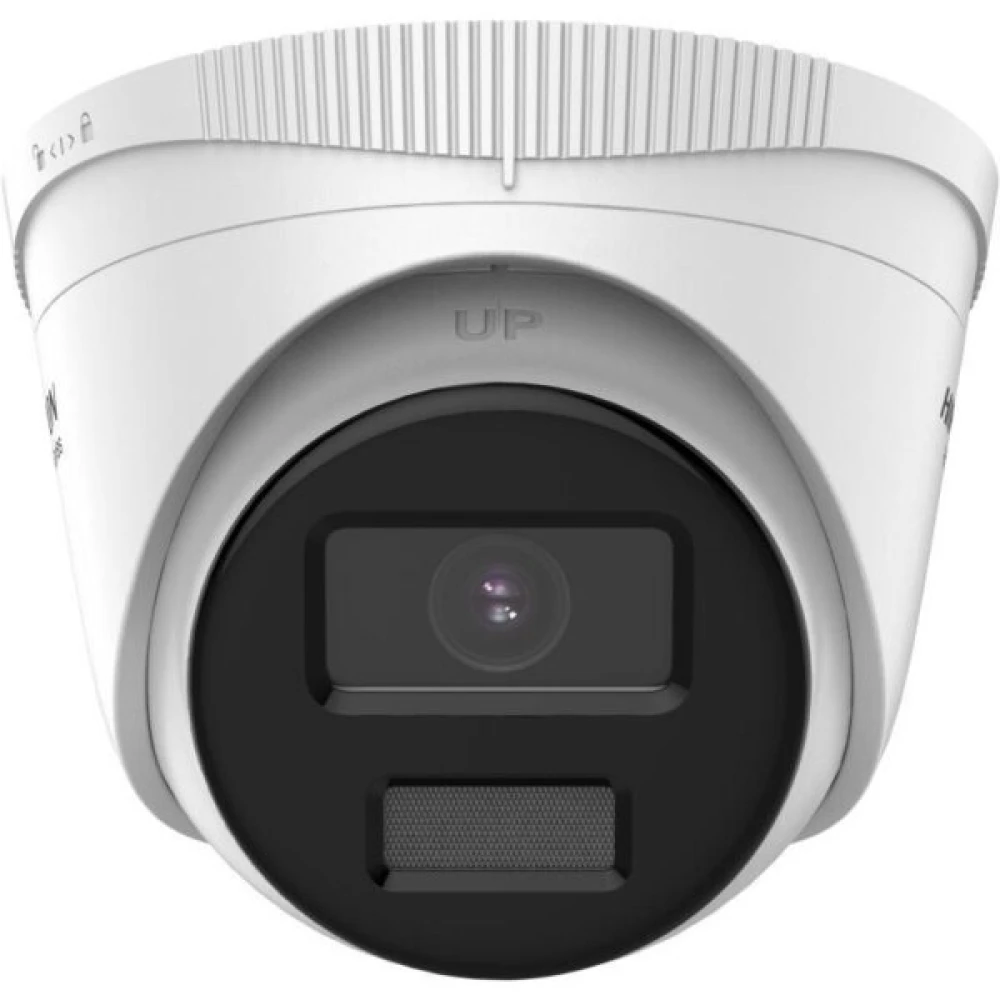

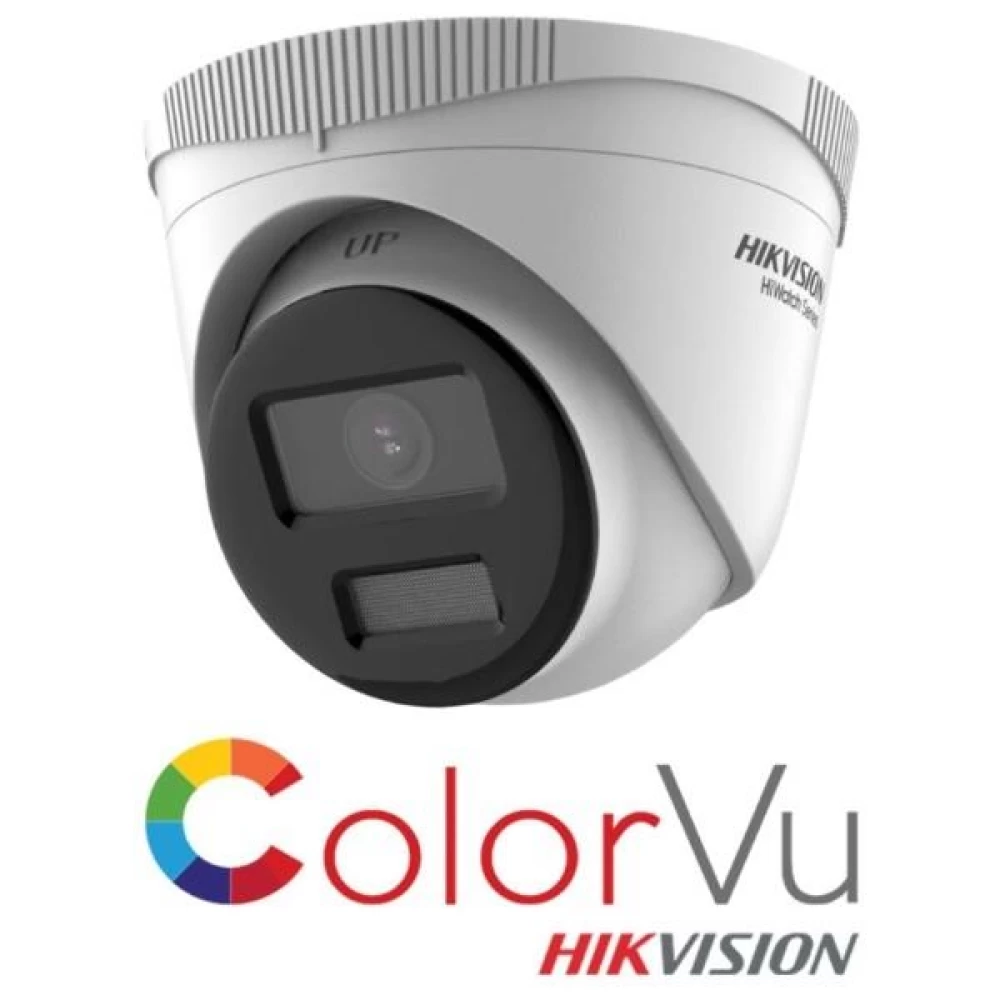

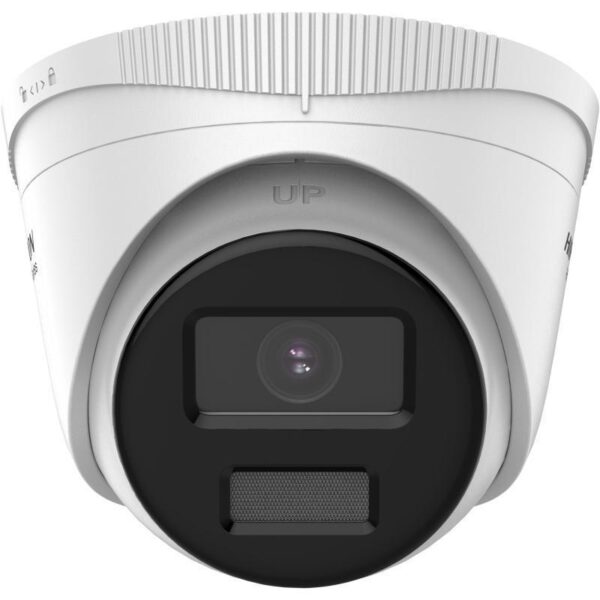

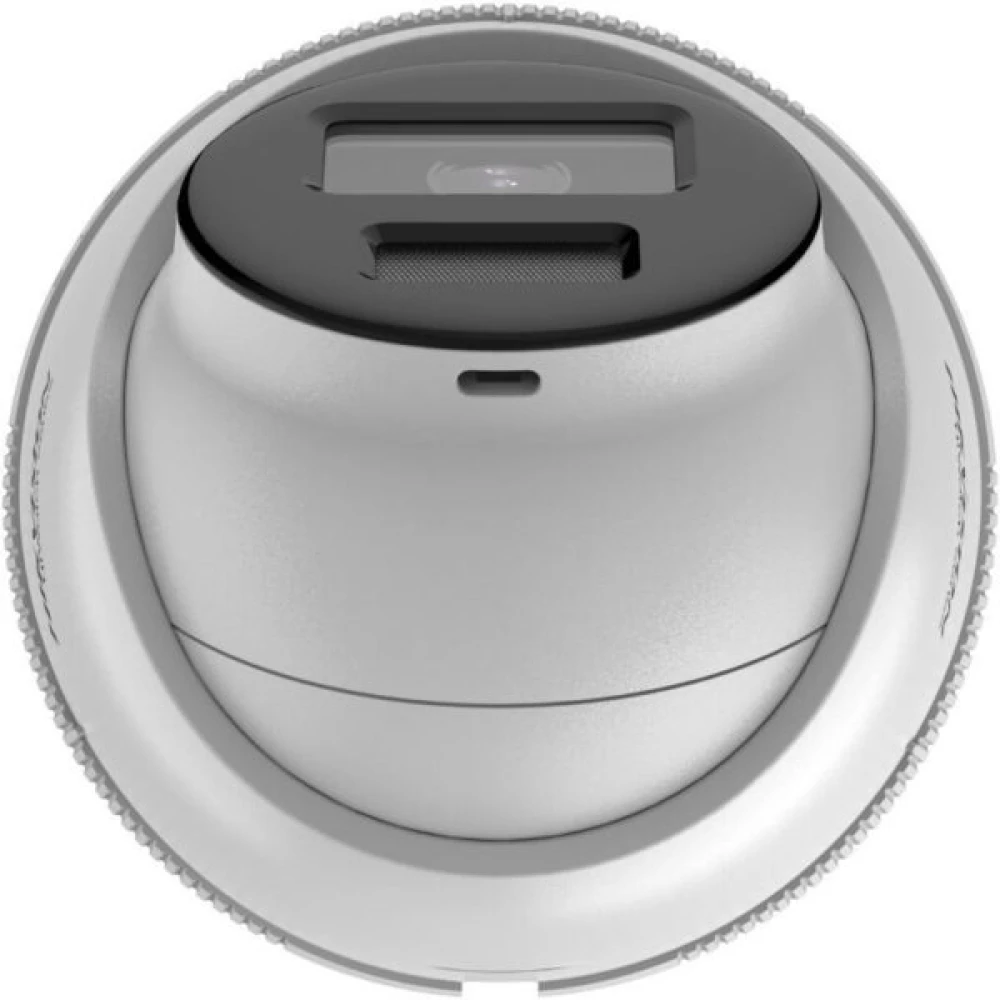

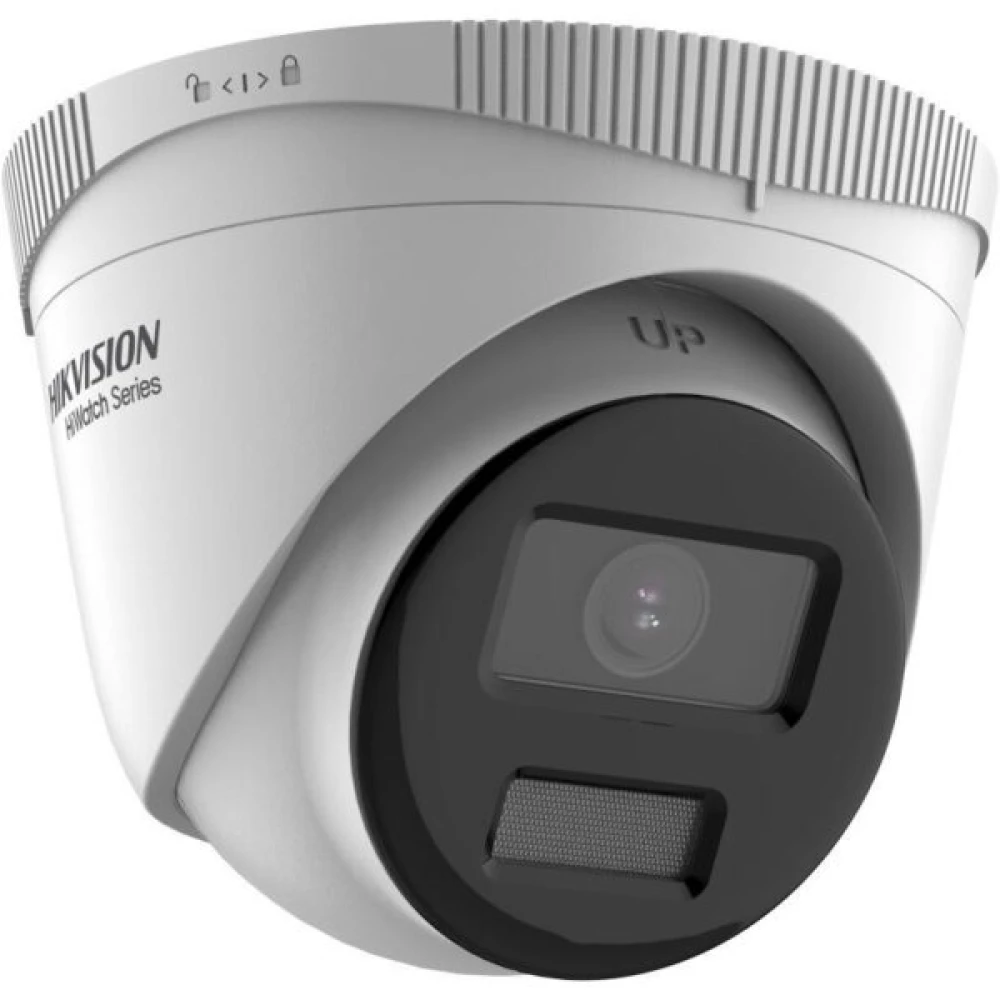

Κάμερα DOME 4MP 2.8mm up to 30m IR Range ColorVU Hikvision/HiWatch HWI-T249

Κάμερα DOME 4MP 2.8mm up to 30m IR Range ColorVU Hikvision/HiWatch

– Υψηλής ποιότητας απεικόνιση με ανάλυση 4 MP
– Πολύχρωμη απεικόνιση (24/7)
– Υποστήριξη ανίχνευσης ανθρώπων και οχημάτων
– Ανθεκτικό στο νερό και τη σκόνη (IP67)
– Αποτελεσματική τεχνολογία συμπίεσης H.265+

Τεχνικά χαρακτηριστικά:

Camera

Image Sensor1/3″ Progressive Scan CMOS

Max. Resolution2560 × 1440

Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time1/3 s to 1/100,000 s

Day & Night24/7 color imaging

Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

Lens TypeFixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°

4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°

Lens MountM12

Iris TypeFixed

ApertureF1.0

Depth of Field

2.8 mm: 2 m to ∞

4 mm: 2.7 m to ∞

DORI

DORI

2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator

Supplement Light TypeWhite Light

Supplement Light RangeUp to 30 m

Smart Supplement LightYes

Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps

H.264 TypeBaseline Profile,Main Profile,High Profile

H.265 TypeMain Profile

Bit Rate ControlCBR,VBR

Region of Interest (ROI)1 fixed region(s) for main stream

Network

ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Simultaneous Live ViewUp to 6 channels

APIOpen Network Video Interface(Profile S,Profile T), ISAPI，SDK

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

ClientiVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)120 dB

SNR≥ 52 dB

Day/Night SwitchDay,Night,Auto,Schedule

Image EnhancementBLC,HLC,3D DNR

Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Privacy Mask4 programmable polygon privacy masks

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

LinkageUpload to FTP, send email, notify surveillance center, trigger capture

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

MaterialMetal & Plastic

Dimension

Ø112 mm × 88.4 mm (Ø4.4 × 3.5″)”

Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

WeightApprox. 370 g (0.8 lb.)

With Package WeightApprox. 600 g (1.3 lb.)

Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

LanguageEnglish, Ukrainian

General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013
